6 set DIN Rail Terminal Blocks Kit Terminal+Ground Blocks+Aluminum Rail+End Brackets+End Covers+ Kits

Terminal Blocks UK2.5B:<br>It can connect two conductors with ease, even large conductor sections are not a problem. Can be used on DIN Rail 35mm, steel or aluminum.<br>Rated voltage: 600V, IEC 690V. Rated current: 20A, IEC 32A.<br>Conductor -section, solid (AWG): 24-12 conductor -section, flexible (AWG): 24-12.<br>Ground Terminal Blocks Connectors:<br>Type: USLKG2.5 Ground Earth Type Terminal Blocks Wire Connector<br>Application:Conduct Electricity, Transmission of Electrical Signals<br>Rated voltage: 600V, IEC 690V; Rated current: 20A, IEC 34A. Large wire funnel entry, Solid Wire (AWG/mm²): 24-12, IEC 0.2-4, flexible(AWG/mm²): 24-12, IEC 0.2-2.5<br>DIN Rail:<br>Can be installed in all types of terminal boxes, distribution boxes, control cabinets, switchgear, complete sets of equipment, machinery and equipment.<br>colour:Black + gray + red<br>Material:Plastic + metal<br>size:Thickness : 1.2mm/ 0.047 inch<br>Height : 7.5mm/ 0.29 inch<br>Length : 200mm/ 7.87 inch<br>Width : 35mm/ 1.38 inch<br><br>Package Contents:<br>120 x terminal blocks<br>12 x ground blocks<br>12 x <br>24 x E/UK end brackets<br>24 x UK-2.5BG end covers<br>6 x 8 inch aluminum RoHS Rail<br>24 x marker strip<br><br>Only the above package content, other products are not included.<br>Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

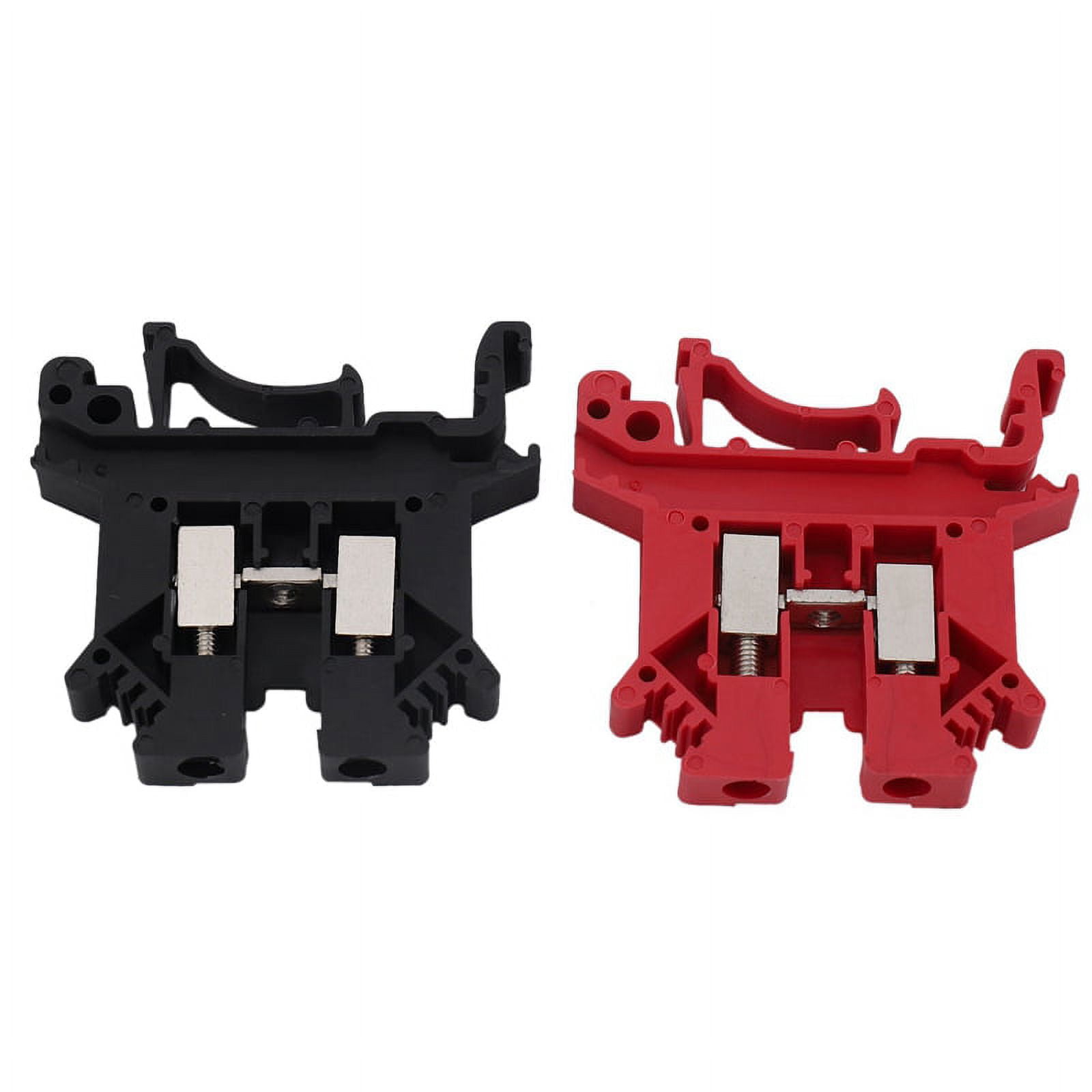

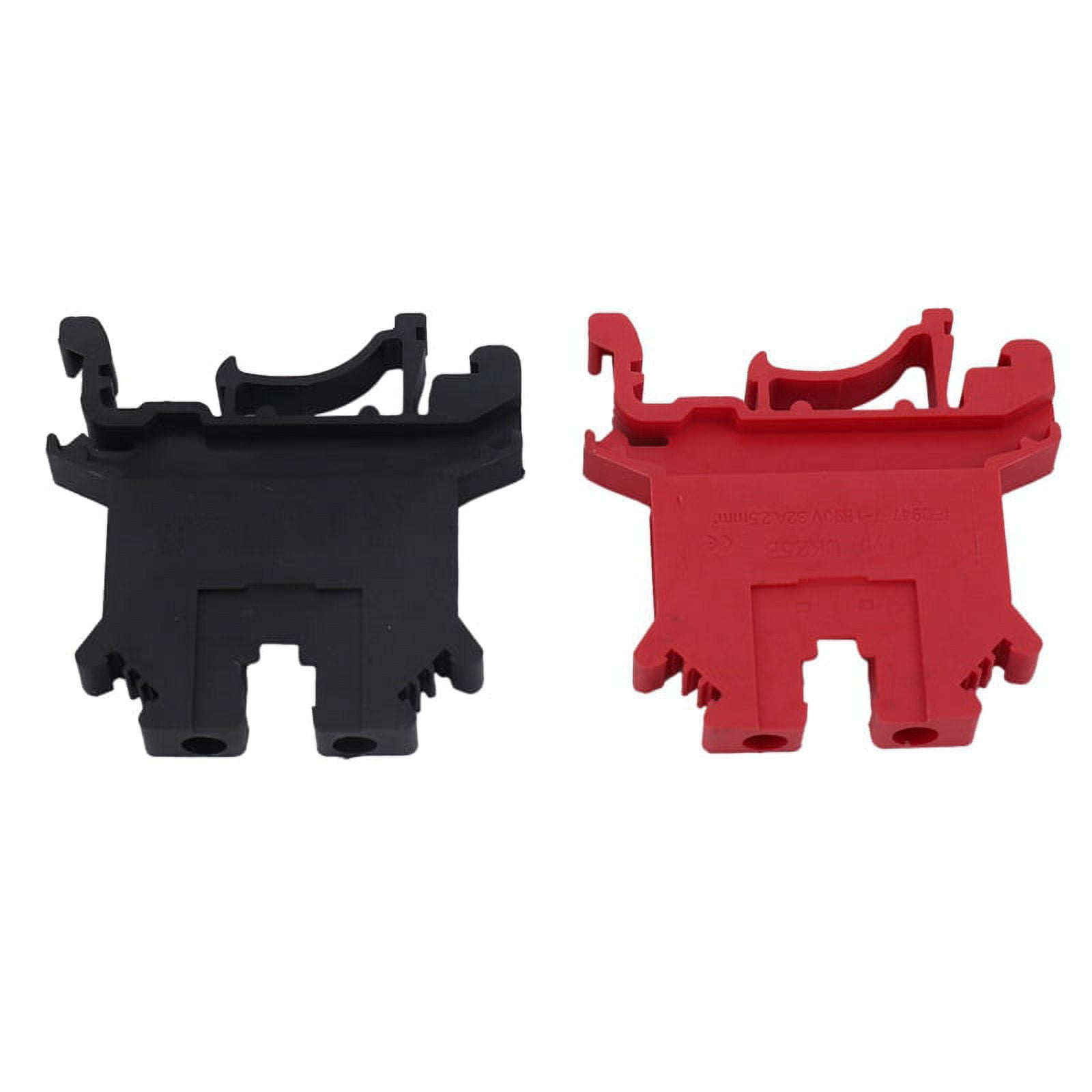

• Terminal Blocks UK2.5B The UK2.5B universal DIN rail terminal block series has the typical features which are decisive for practical applications.It can connect two conductors with ease, even large conductor sections are not a problem. Can be used on DIN Rail 35mm, steel or aluminum.

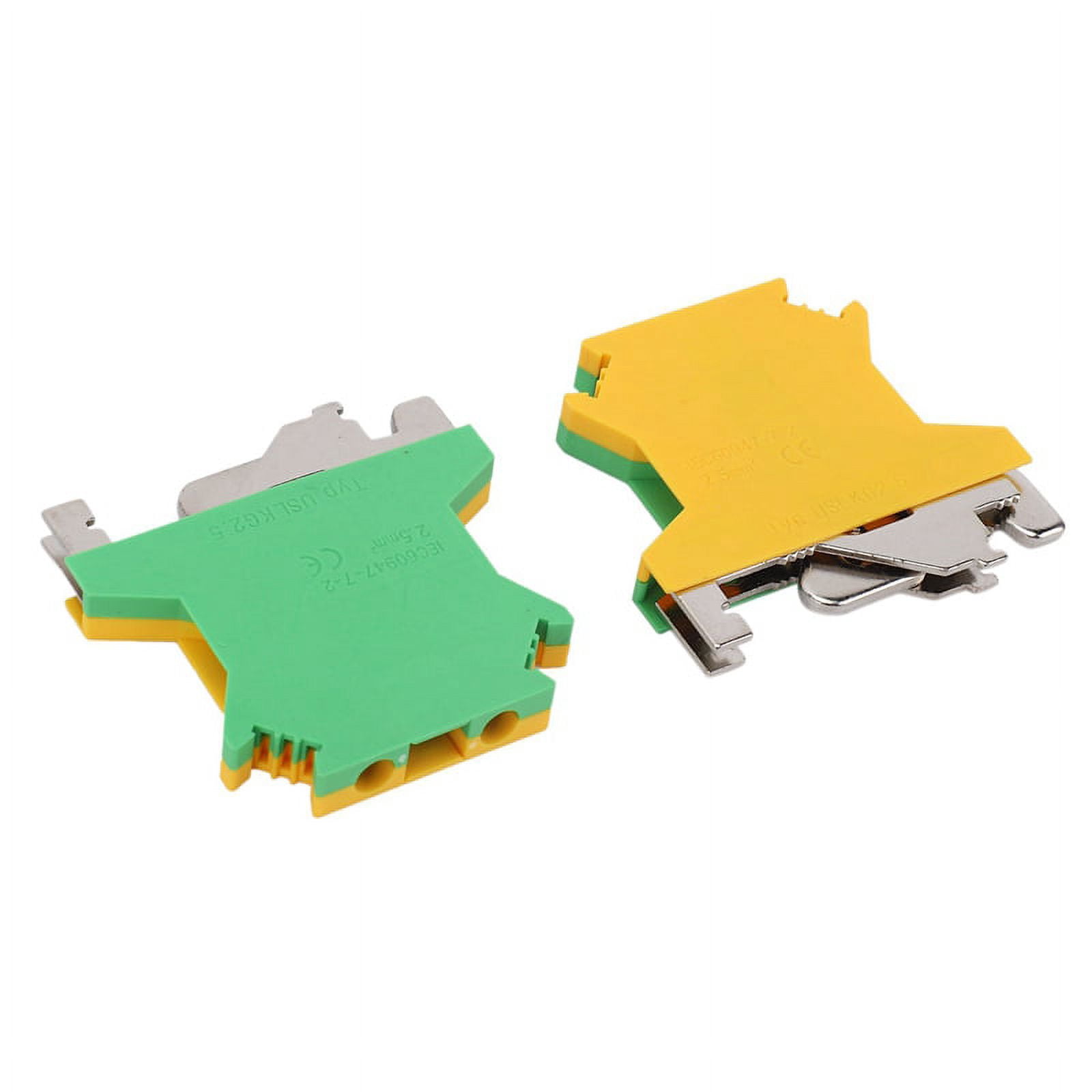

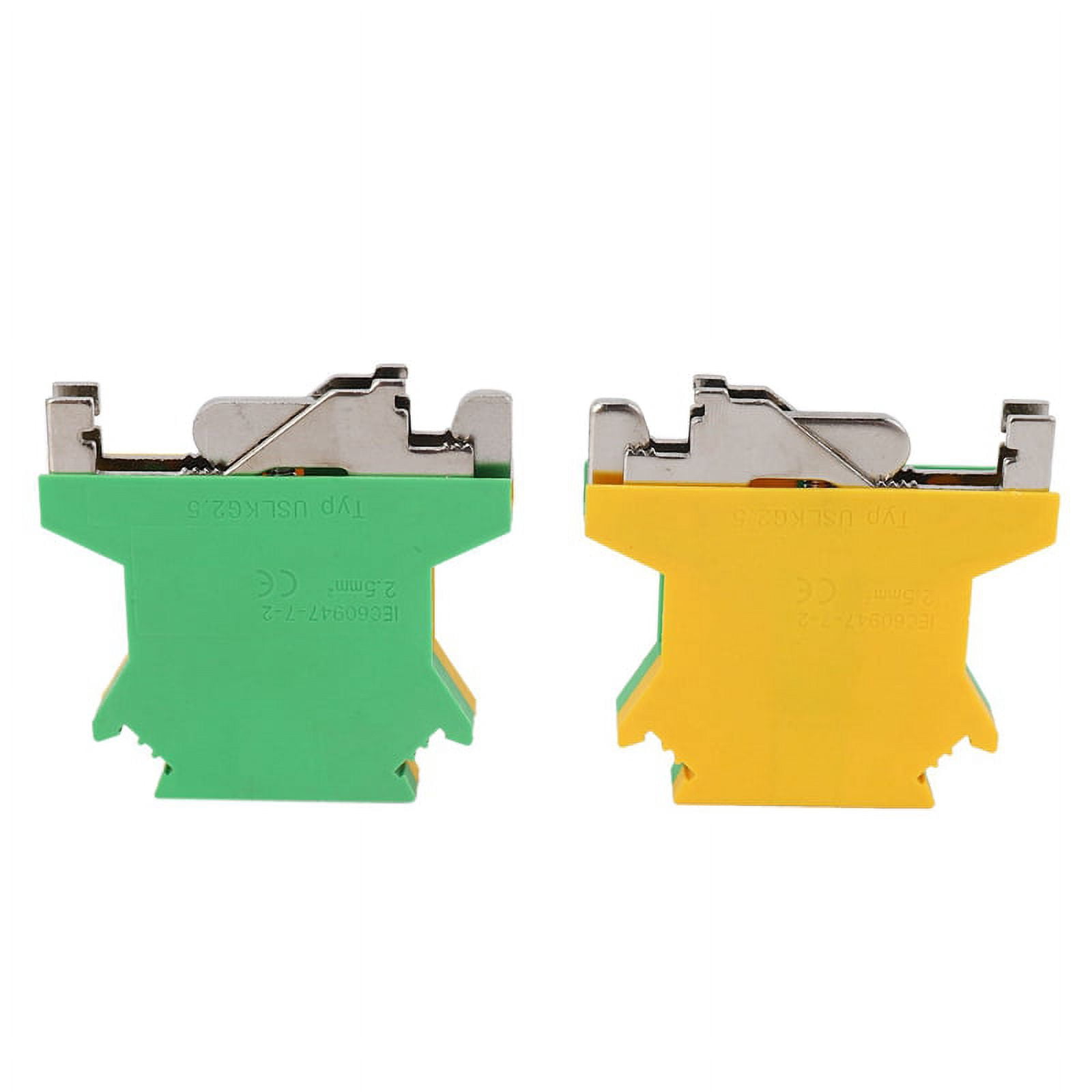

• Ground Terminal Blocks Connectors The grounding terminal blocks provide an easy-to-identify, convenient, neatly organized grounding bus that is mounted on the DIN rail.The protective terminal blocks has strong clamps to tight fixation on DIN rails to achieve the PE function.

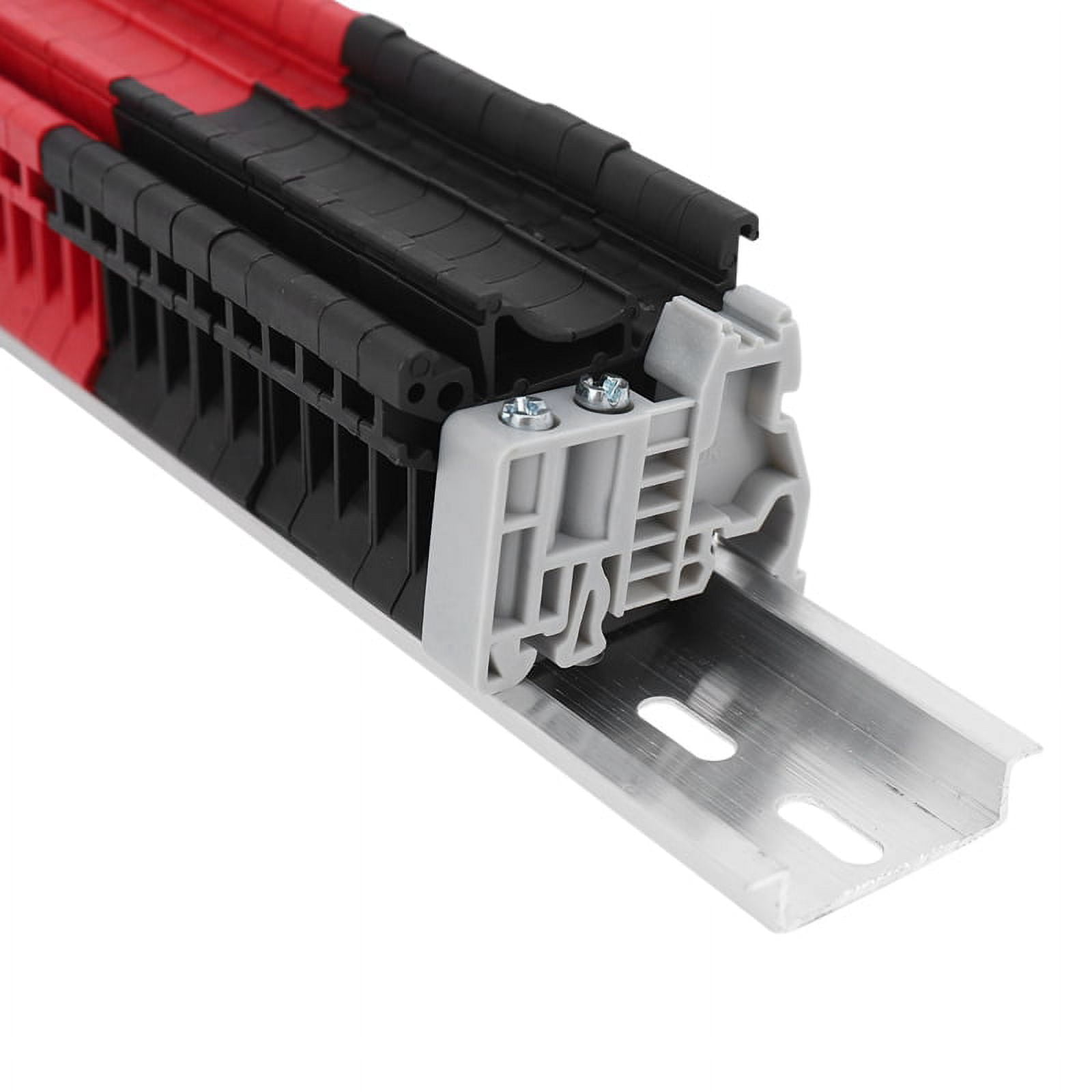

• 35MM DIN Rail Mounting rails and brackets to enhance configuration and installation. Guide rails can be used to install , contactors, surge protectors, modular jacks, motor soft , PLC, relays, terminals and other electrical appliances.

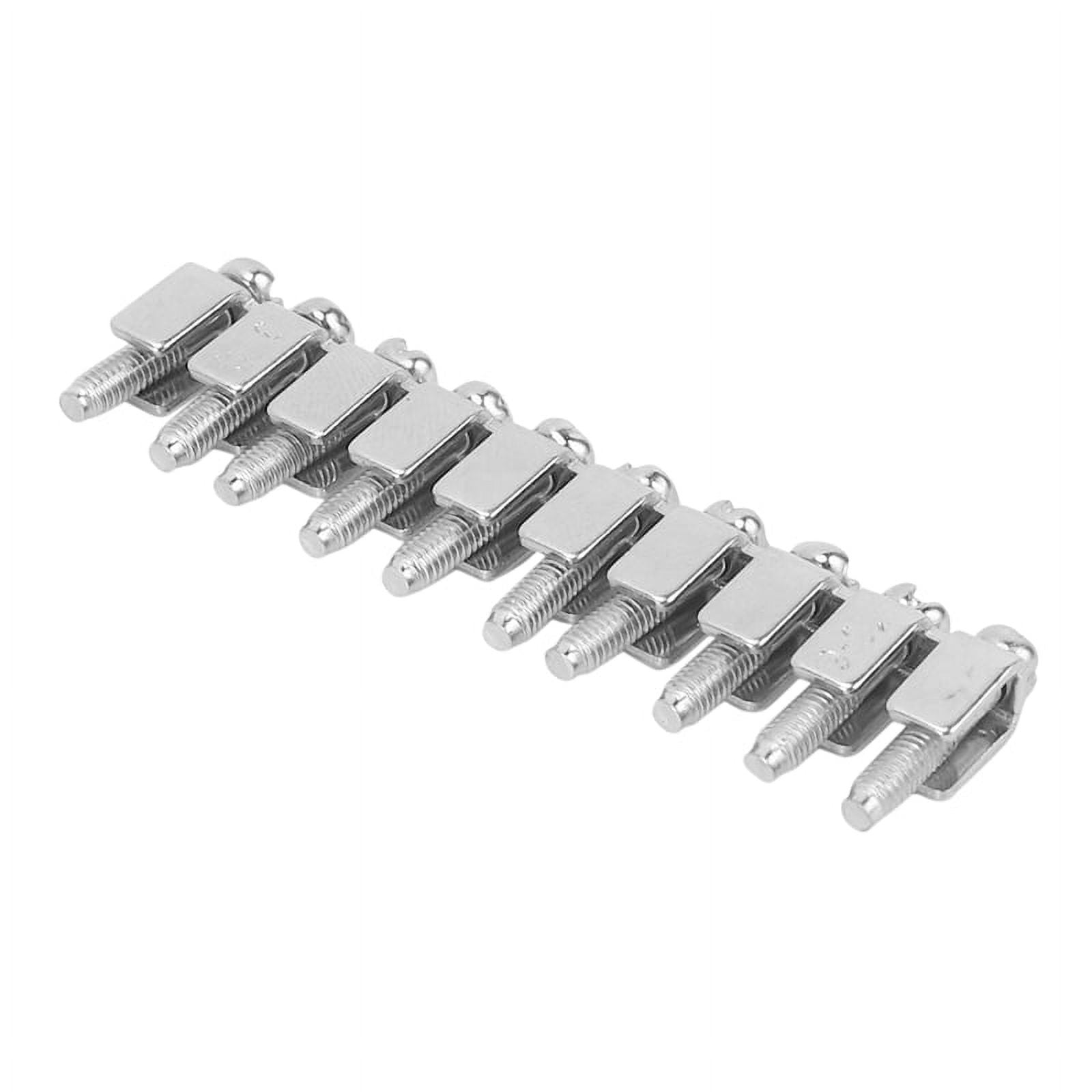

• Terminal Insertion Bridge, End Stopper Bracket, End Cover The insertion bridge can be insert at the top clamp space of UK terminal blocks, potential distribution can be contact quickly using those bridges. UK series End Stopper Clamps are fastened using screws or simply snapped onto the DIN rail. End Cover Usage: Connection by tighten

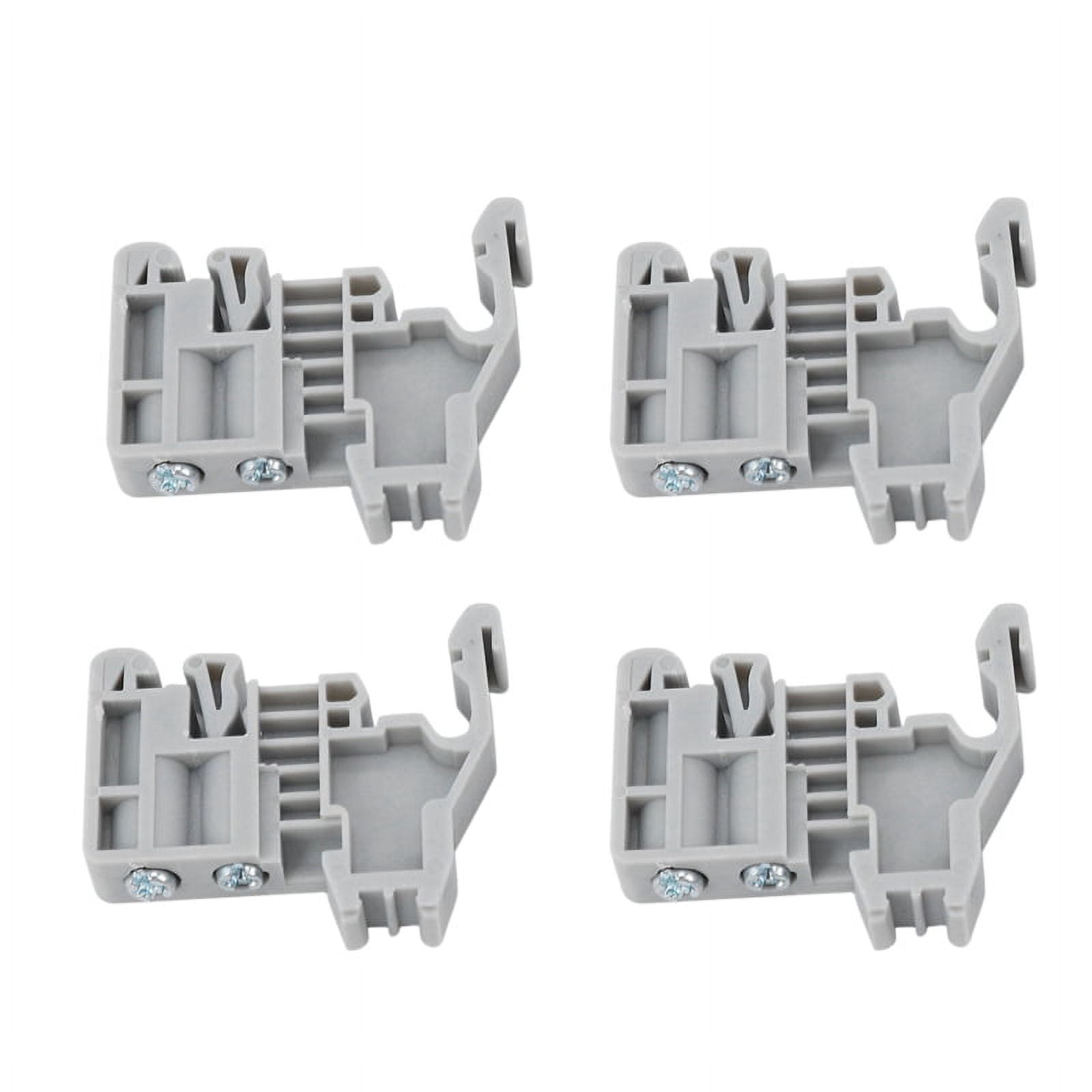

• End Stopper Bracket:Terminal fixed component mark clamp and marl strip could be blocked onto it to mark it, additionally, it could be used as fixed component to terminal row's termination.External Bridge Copper :Cut them down to customize electrical ganging of blocks!End Cover:Usage: Connection by tighten, for a clean professional look!
